ESP32网站开发手册

松果云开发的ESP32开发板PCY-ESP32-N1默认集成了 MicroWebSrv2模块， 也就是说，它也是一个微型的Web服务器。接下来我们来介绍如何在PCY-ESP32-N1开发板上进行微型网站的开发。

MicroWebSrv2介绍

MicroWebSrv2是适用于MicroPython和CPython的功能强大的新型嵌入式Web服务器，支持路由处理(route handlers), 支持WebSockets、PyhtmlTemplate等模块，支持巨量并发请求。

它是完全异步的，连接和内存管理得到了很好的优化，提高了响应速度。

主要应用在 Pyboard Pycom WiPy ESP32 STM32 等资源紧张的开发板上。

默认页面

当请求的路径指向目录时，将使用如下文件作为默认页面。

页面文件名
index.html
index.htm
default.html
default.htm

提示

可以通过调用MicroWebSrv2.AddDefaultPage静态方法来全局添加新的默认页面。

静态资源访问

只需要将静态资源文件，放到www目录下，就可以被访问到。
MIME类型允许特定文件作为可读资源，并与相应的内容类型一起传输。

文件扩展名	MIME类型
.txt	text/plain
.htm	text/html
.html	text/html
.css	text/css
.csv	text/csv
.js	application/javascript
.xml	application/xml
.xhtml	application/xhtml+xml
.json	application/json
.zip	application/zip
.pdf	application/pdf
.ts	application/typescript
.woff	font/woff
.woff2	font/woff2
.ttf	font/ttf
.otf	font/otf
.jpg	image/jpeg
.jpeg	image/jpeg
.png	image/png
.gif	image/gif
.svg	image/svg+xml
.ico	image/x-icon

提示

可以通过调用MicroWebSrv2.AddMimeType静态方法来全局添加新的MIME类型。

处理网页路由

microWebSrv2具有简单有效的网络路由系统。 一个带有装饰器的简单处理程序函数，使您可以处理请求。

处理请求的示例：

from MicroWebSrv2 import *

@WebRoute(GET, '/test')
def RequestTest(microWebSrv2, request) :
    request.Response.ReturnOkJSON({
        'ClientAddr' : request.UserAddress,
        'Accept'     : request.Accept,
        'UserAgent'  : request.UserAgent
    })

提示

更多详细文档，请转Web路由。

MicroWebSrv2类

MicroWebSrv2是主类，并且已经被程序框架创建了实例对象。 想要访问该对象，需要如下方法引用：

from PineconeNode import mws2

print(dir(mws2))

MicroWebSrv2静态方法

• MicroWebSrv2.LoadModule(...)

@staticmethod
def LoadModule(modName)
# 为MicroWebSrv2的所有实例加载一个全局专用模块。
# -返回模块的实例化类。
# 此实例可用于配置全局参数和回调。
# -<modName>是模块的名称，必须是非空字符串。
# 如果发生错误，将引发异常。

• MicroWebSrv2.HTMLEscape(...)

@staticmethod
def HTMLEscape(s)
# Escapes HTML special characters of a text to use it in HTML code.
#   - Returns the escaped string of <s>.
#   - <s> is a text that must be escaped and must be a string.
# An exception can be raised if <s> is not correct.

• MicroWebSrv2.AddDefaultPage(...)

@staticmethod
def AddDefaultPage(filename)
# Adds a new default page that it can be returned when a directory resource is requested.
# Default pages are searched by order in list and file must be found in the directory.
# Ex: AddDefaultPage('home.html')
#   - No return value.
#   - <filename> is the name of page file that will be searched and must be a not empty string.
# An exception can be raised if <filename> is not correct.

• MicroWebSrv2.AddMimeType(...)

@staticmethod
def AddMimeType(ext, mimeType)
# Adds a new MIME type to support specified file type and response content type.
# Ex: AddMimeType('.tar', 'application/x-tar')
#   - No return value.
#   - <ext> is the file extention including the dot and must be a not empty string.
#   - <mimeType> is the name of MIME type and must be a not empty string.
# An exception can be raised if arguments are not correct.

• MicroWebSrv2.GetMimeTypeFromFilename(...)

@staticmethod
def GetMimeTypeFromFilename(filename)
# Obtains the name of MIME type corresponding to a filename.
#   - Returns the name of MIME type found in string, returns None otherwise.
#   - <filename> is a path to a file and must be a not empty string.

MicroWebSrv2实例方法

• mws2.ResolvePhysicalPath(...)

def ResolvePhysicalPath(self, urlPath)
# Resolves the specified relative URL path to the physical path.
#   - Returns the physical path found or None.
#   - <urlPath> is the relative URL path to resolve and must be a not empty string.
# An exception can be raised if <urlPath> is not correct.

• mws2.EnableSSL(...)

def EnableSSL(self, certFile, keyFile, caFile=None)
# Configures the web server to apply the SSL/TLS security layer (https).
# Warning, the ssl library must be implements SSLContext on Python version to support secured web server.
#   - No return value.
#   - <certFile> is the path of the certificate file and must be a not empty string.
#   - <keyFile> is the path of the private key file and must be a not empty string.
#   - <caFile> is the path of a PEM file and must be a not empty string or None.
# If the web server port in BindAddress is 80 (default http), it automatically switches to port 443 (default https).
# An exception will be raised if an error occurs.

• mws2.DisableSSL(...)

def DisableSSL(self)
# Configures the web server as SSL/TLS web server (https).
#   - No return value.
# If the web server port in BindAddress is 443 (default https), it automatically switches to port 80 (default http).
# An exception can be raised if an error occurs.

MicroWebSrv2属性

名称	类型	Get	Set	说明
IsRunning	bool	☑️	-	Indicates that the server is running.
ConnQueueCapacity	int	☑️	☑️	Queue capacity of the TCP server (backlog).
BufferSlotsCount	int	☑️	☑️	Number of pre-allocated memory buffer slots.
BufferSlotSize	int	☑️	☑️	Size of each pre-allocated memory buffer slots.
KeepAllocBufferSlots	bool	☑️	☑️	Maintains the allocation of memory buffer slots.
MaxRequestContentLength	int	☑️	☑️	Maximum content length who can be processed by a request.
BindAddress	tuple	☑️	☑️	Local bind address of the TCP server such as a tuple of (str_ip_addr, int_port).
IsSSLEnabled	bool	☑️	-	Indicates that SSL/TLS security layer with certificate is currently enabled.
RootPath	str	☑️	☑️	Path of the root folder that contains the web files.
RequestsTimeoutSec	int	☑️	☑️	Timeout in seconds to waiting the next data reception of requests.
NotFoundURL	str or None	☑️	☑️	URL used to redirects requests not found.
AllowAllOrigins	bool	☑️	☑️	Indicates that all resource origins of requests are allowed.
CORSAllowAll	bool	☑️	☑️	Allows all CORS values for the pre-flight requests (OPTIONS).
OnLogging	callback or None	☑️	☑️	Callback function when the server logs information.

提示

上面的回调函数的定义如下：

def OnLogging(microWebSrv2, msg, msgType)
# <microWebSrv2> is of type MicroWebSrv2
# <msg> is of type str
# <msgType> can take following values:
#    - MicroWebSrv2.DEBUG
#    - MicroWebSrv2.INFO
#    - MicroWebSrv2.WARNING
#    - MicroWebSrv2.ERROR

Web路由

Web路由使您可以定义对特定资源的条件访问路径，并对相应的http请求作出反应。 它们还提供了使用自由条件的可能性，这些条件可以作为输入元素来检索。

在microWebSrv2中，Web路由是由 processing handler处理函数， requested method请求方法， requested path请求路径， 以及optional name可选名称组成。 请求的路径也可以包含可变部分，这些可变部分可以作为参数检索。

最后，在http请求期间，如果方法和路径与路由匹配，则使用期望的参数调用处理函数。

路由处理

路由处理是用路由设置装饰的函数。 此设置使用WebRoute来装饰，其定义如下：

@WebRoute（method，routePath，name = None）
# <method>是http请求的方法，并且必须为非空字符串。
# <routePath>是http请求的路径，并且必须为非空字符串。
# <name>是可选的路由名称，必须为字符串或None。

处理函数的定义如下：

@WebRoute（...）
def  RequestHandler（microWebSrv2，request）
# <microWebSrv2>类型为MicroWebSrv2
# <request>类型为HttpRequest

该方法参数可以是一个字符串，如下： GET， HEAD， POST， PUT， DELETE， OPTIONS， PATCH

该routePath参数必须以/开头，并指定路径的相对URL。

注意

路由处理函数是全局的，并且可以用MicroWebSrv2类的任何实例调用。

处理函数示例：

@WebRoute(GET, '/my-resource')
def RequestHandler1(microWebSrv2, request) :
    pass

@WebRoute(POST, '/test/virtual-page.html', 'myTestRoute')
def RequestHandler2(microWebSrv2, request) :
    pass

@WebRoute(OPTIONS, '/')
def RequestHandler3(microWebSrv2, request) :
    pass

路由参数

可以包含可以作为输入元素检索的路由参数。 通过使用和命名和构建 这些参数可以直接定义到请求路径中，如下所示，用<和> 包裹：

@WebRoute(GET, '/users/<id>/profile/<property>')

在这个网页路由中，定义了两个参数： id和property。 因此，路由是可变的，并且对应于可以使用任何参数的请求路径。

'/users/123/profile/firstname'

因此，处理函数定义如下：

@WebRoute(...)
def RequestHandler(microWebSrv2, request, args)
# <microWebSrv2> is of type MicroWebSrv2
# <request> is of type HttpRequest
# <args> is a dictionary of route arguments

现在，args可以像args['id'] 或args['property']这样使用。
请注意，值可以是字符串，也可以直接是整数。

路由方法

• RegisterRoute(...)

def RegisterRoute(handler, method, routePath, name=None)
# Registers a global web route directly, without decorator usage.
#   - No return value.
#   - <handler> is the route processing handler and must be a function (see above).
#   - <method> is the http requested method and must be a not empty string.
#   - <routePath> is the http requested path and must be a not empty string.
#   - <name> is an optional route name and must be a string or None.
# An exception can be raised if arguments are not correct.

• ResolveRoute(...)

def ResolveRoute(method, path)
# Resolves a web route using a method and a path.
#   - Returns a RouteResult class if no error occurred and route was found, returns None otherwise.
#   - <method> is an http method and must be of string type.
#   - <path> is an http relative path and must be of string type.

RouteResult类开放以下属性：

名称	类型
Handler	processing handler
Method	string
RoutePath	string
Name	string or None
Args	dictionary

• PathFromRoute(...)

def PathFromRoute(routeName, routeArgs={ })
# Constructs the relative path from the route name and route arguments.
#   - Returns a string that is the relative path.
#   - <routeName> is the name of the web route and must be a not empty string.
#   - <routeArgs> is a dictionary of needed argument names and values.
# An exception can be raised if arguments are not correct or route was not found.

HttpRequest类

HttpRequest类表示web服务器接收到的http请求。

它可以在web路由处理程序或模块中获得。

它还允许您处理响应。

HttpRequest实例方法

• httpRequest.GetPostedURLEncodedForm(...)

def GetPostedURLEncodedForm(self)
# Obtains name/value pairs from an URL encoded form.
# The http request must have an URL encoded form content.
#   - Returns a dictionary of name/value pairs (string for both).

• httpRequest.GetPostedJSONObject(...)

def GetPostedJSONObject(self)
# Obtains the object posted in JSON format.
# The http request must have a JSON content.
#   - Returns any type of object or None.

• httpRequest.GetHeader(...)

def GetHeader(self, name)
# Obtains the value of an http request header.
#   - Returns always a string value.
#   - <name> must be a not empty string.
# An exception can be raised if <name> is not correct.

• httpRequest.CheckBasicAuth(...)

def CheckBasicAuth(self, username, password)
# Checks if the http request is authenticated with the "Basic" method.
#   - Returns True if the authentication is correct, returns False otherwise.
#   - <username> must be a string.
#   - <password> must be a string.
# An exception can be raised if arguments are not correct.

• httpRequest.CheckBearerAuth(...)

def CheckBearerAuth(self, token)
# Checks if the http request is authenticated with the "Bearer" method.
#   - Returns True if authentication is correct, returns False otherwise.
#   - <token> is the session token and must be a string.
# An exception can be raised if <token> is not correct.

HttpRequest属性

名称	类型	Get	Set	说明
UserAddress	tuple	☑️	-	User remote address of the http connection such as a tuple of (str_ip_addr, int_port).
IsSSL	bool	☑️	-	Indicates that the http connection is secured by SSL/TLS security layer with certificate.
HttpVer	str	☑️	-	Version of the client protocol of the http connection.
Method	str	☑️	-	Name of the method transmitted with this request.
Path	str	☑️	-	Path of the resource transmitted with this request.
QueryString	str	☑️	-	Full query string transmitted with this request.
QueryParams	dict	☑️	-	Parameters of the query string transmitted with this request.
Host	str	☑️	-	Hostname transmitted with this request.
Accept	list	☑️	-	List of possible content types expected in response to this request.
AcceptEncodings	list	☑️	-	List of possible encodings expected in response to this request.
AcceptLanguages	list	☑️	-	*List of possible languages expected in response to this request.
Cookies	list	☑️	-	List of cookies transmitted with this request.
CacheControl	str	☑️	-	Control of cache transmitted with this request.
Referer	str	☑️	-	Referer address transmitted with this request.
ContentType	str	☑️	-	Type of the content included in this request.
ContentLength	int	☑️	-	Length of the content included in this request.
UserAgent	str	☑️	-	Name of the client agent transmitted with this request.
Authorization	str	☑️	-	Authorization string transmitted with this request.
Origin	str	☑️	-	Address of the origin transmitted with this request.
IsKeepAlive	bool	☑️	-	Indicates that the http connection can be keep alive.
IsUpgrade	bool	☑️	-	Indicates that the http connection must be upgraded.
Upgrade	str	☑️	-	Upgrade string transmitted with this request.
Content	memoryview or None	☑️	-	Raw data of the content included in this request.
Response	HttpResponse	☑️	-	Http response related to this connection.
XAsyncTCPClient	XAsyncTCPClient	☑️	-	Asynchronous TCP connection from the XAsyncSockets library.

HttpResponse类

HttpResponse类用于管理http请求的响应。

它可以通过实例化的HttpRequest的Response属性获得。

HttpResponse实例方法

• httpResponse.SetHeader(...)

def SetHeader(self, name, value)
# Set a header to the http response.
#   - No return value.
#   - <name> must be a not empty string.
#   - <value> may be anything but cannot be None.
# An exception can be raised if arguments are not correct.

• httpResponse.SwitchingProtocols(...)

def SwitchingProtocols(self, upgrade)
# Sends a special http response to upgrade the connection.
#   - No return value.
#   - <upgrade> must be a not empty string.
# An exception can be raised if <upgrade> is not correct.

• httpResponse.ReturnStream(...)

def ReturnStream(self, code, stream)
# Sends a stream content to the http response.
#   - No return value.
#   - <code> is the http status code and must be a positive integer.
#   - <stream> must be a readable buffer protocol object.
# An exception can be raised if arguments are not correct.

• httpResponse.Return(...)

def Return(self, code, content=None)
# Sends an http response with or without content.
#   - No return value.
#   - <code> is the http status code and must be a positive integer.
#   - <content> must be a string or in bytes or convertible into bytes or None.
# An exception can be raised if arguments are not correct.

• httpResponse.ReturnJSON(...)

def ReturnJSON(self, code, obj)
# Sends an http response with a JSON content.
#   - No return value.
#   - <code> is the http status code and must be a positive integer.
#   - <obj> can be anything and will be serialized (stringify process).
# An exception can be raised if arguments are not correct.

• httpResponse.ReturnOk(...)

def ReturnOk(self, content=None)
# Sends a success http response with or without content.
#   - No return value.
#   - <content> must be a string or in bytes or convertible into bytes or None.
# An exception can be raised if <content> is not correct.

• httpResponse.ReturnOkJSON(...)

def ReturnOkJSON(self, obj)
# Sends a success http response with a JSON content.
#   - No return value.
#   - <obj> can be anything and will be serialized (stringify process).
# An exception can be raised if <obj> is not correct.

• httpResponse.ReturnFile(...)

def ReturnFile(self, filename, attachmentName=None)
# Sends a file to the http response.
#   - No return value.
#   - <filename> is the physical path of the file and must be a not empty string.
#   - <attachmentName> can be the name of the file to save, in string, or None.
#     If None, the user will see it "on the fly" in his browser, he will can save it otherwise.
# An exception can be raised if arguments are not correct.

• httpResponse.ReturnNotModified(...)

def ReturnNotModified(self)
# Sends a not modified http response.
# Used in resources caching context.
#   - No return value.

• httpResponse.ReturnRedirect(...)

def ReturnRedirect(self, location)
# Sends a temporary redirect http response.
# Used to move the user to a new url.
#   - No return value.
#   - <location> is the relative or absolute URL and must be a not empty string.
# An exception can be raised if <location> is not correct.

• httpResponse.ReturnBadRequest(...)

def ReturnBadRequest(self)
# Sends a bad request http response.
# Used for user request error.
#   - No return value.

• httpResponse.ReturnUnauthorized(...)

def ReturnUnauthorized(self, typeName, realm=None)
# Sends an unauthorized http response.
# Used if the user needs to authenticate.
#   - No return value.
#   - <typeName> is the name of required authentication and must be a not empty string.
#   - <realm> is a name for the protected resource and can be a string or None.
# An exception can be raised if arguments are not correct.

• httpResponse.ReturnForbidden(...)

def ReturnForbidden(self)
# Sends a forbidden http response.
# Used to indicate a denied access.
#   - No return value.

• httpResponse.ReturnNotFound(...)

def ReturnNotFound(self)
# Sends a not found http response.
# Used to indicate that the resource does not exist.
#   - No return value.

• httpResponse.ReturnMethodNotAllowed(...)

def ReturnMethodNotAllowed(self)
# Sends a method not allowed http response.
# Used if the method is not supported for resource.
#   - No return value.

• httpResponse.ReturnEntityTooLarge(...)

def ReturnEntityTooLarge(self)
# Sends an entity too large http response.
# Used for an excessive content size.
#   - No return value.

• httpResponse.ReturnInternalServerError(...)

def ReturnInternalServerError(self)
# Sends an internal server error http response.
# Used if an error has occurred.
#   - No return value.

• httpResponse.ReturnNotImplemented(...)

def ReturnNotImplemented(self)
# Sends a not implemented http response.
# Used in case of a non-existent process of the resource.
#   - No return value.

• httpResponse.ReturnServiceUnavailable(...)

def ReturnServiceUnavailable(self)
# Sends a service unavailable http response.
# Used if it is currently impossible to process the request.
#   - No return value.

• httpResponse.ReturnBasicAuthRequired(...)

def ReturnBasicAuthRequired(self)
# Sends an http response to indicate that "Basic" authentication is required.
#   - No return value.

• httpResponse.ReturnBearerAuthRequired(...)

def ReturnBearerAuthRequired(self)
# Sends an http response to indicate that "Bearer" authentication is required.
#   - No return value.

HttpResponse属性

名称	类型	Get	Set	说明
Request	HttpRequest	☑️	-	Http request related to this response.
UserAddress	tuple	☑️	-	User remote address of the http connection such as a tuple of (str_ip_addr, int_port).
IsSSL	bool	☑️	-	Indicates that the http connection is secured by SSL/TLS security layer with certificate.
AllowCaching	bool	☑️	☑️	Indicates to the user the possible caching of this response.
AccessControlAllowOrigin	str or None	☑️	☑️	Indicates to the user the allowed resource origin.
ContentType	str or None	☑️	☑️	Type of the content of this response.
ContentCharset	str or None	☑️	☑️	Encoding charset used for the content of this response.
ContentLength	int	☑️	☑️	Length of the content of this response.
HeadersSent	bool	☑️	-	Indicates that response http headers was already sent.
OnSent	callback or None	☑️	☑️	Callback function when response is fully sent.

提示

上面的回调函数的定义如下：

def OnSent(microWebSrv2, response)
# <microWebSrv2> is of type MicroWebSrv2
# <response> is of type HttpResponse

添加模块

WebSocket模块

from MicroWebSrv2 import *

WS_CHAT_SUB_PROTOCOL = 'myGreatChat-v1'

def OnWebSocketProtocol(microWebSrv2, protocols) :
    if WS_CHAT_SUB_PROTOCOL in protocols :
        return WS_CHAT_SUB_PROTOCOL

def OnWebSocketAccepted(microWebSrv2, webSocket) :
    print('New WebSocket (myGreatChat proto) accepted from %s:%s.' % webSocket.Request.UserAddress)

wsMod = MicroWebSrv2.LoadModule('WebSockets')
wsMod.OnWebSocketProtocol = OnWebSocketProtocol
wsMod.OnWebSocketAccepted = OnWebSocketAccepted

WebSockets模块属性

名称	类型	Get	Set	说明
OnWebSocketProtocol	callback or None	☑️	☑️	Callback function when a new WebSocket connection negociates a sub-protocol.
OnWebSocketAccepted	callback or None	☑️	☑️	Callback function when a new WebSocket connection is accepted.

提示

上面的回调函数的定义如下：

def OnWebSocketProtocol(microWebSrv2, protocols)
# <microWebSrv2> is of type MicroWebSrv2
# <protocols> is a string list of proposed protocols
# RETURN: If you select a protocol, you must return it (the same as in the list)

def OnWebSocketAccepted(microWebSrv2, webSocket)
# <microWebSrv2> is of type MicroWebSrv2
# <webSocket> is of type WebSocket

WebSocket类

WebSocket类是被WebSockets模块自动实例化的。

在回调OnWebSocketAccepted中接受新连接时，可以获得WebSocket。

为了接收各种事件，分配WebSocket回调也很重要。

WebSocket实例方法

• webSocket.SendTextMessage(...)

def SendTextMessage(self, msg)
# Sends a text message through the WebSocket.
#   - Returns True or False.
#   - <msg> must be a not empty string.
# An exception can be raised if <msg> is not correct.

• webSocket.SendBinaryMessage(...)

def SendBinaryMessage(self, msg)
# Sends a binary message through the WebSocket.
#   - Returns True or False.
#   - <msg> must be in bytes or convertible into bytes and not empty.
# An exception can be raised if <msg> is not correct.

• webSocket.Close(...)

def Close(self)
# Closes the WebSocket.
#   - No return value.

WebSocket属性

名称	类型	Get	Set	说明
Request	HttpRequest	☑️	-	Http request related to this connection.
IsClosed	bool	☑️	-	Indicates that connection is closed.
WaitFrameTimeoutSec	int	☑️	☑️	Timeout in seconds to waiting next frame.
MaxRecvMessageLength	int or None	☑️	☑️	Maximum length of messages to receive.
OnTextMessage	callback or None	☑️	☑️	Callback function to receive text messages.
OnBinaryMessage	callback or None	☑️	☑️	Callback function to receive binary messages.
OnClosed	callback or None	☑️	☑️	Callback function when connection is closed.

提示

上面的回调函数的定义如下：

def OnTextMessage(webSocket, msg)
# <webSocket> is of type WebSocket
# <msg> is of type str

def OnBinaryMessage(webSocket, msg)
# <webSocket> is of type WebSocket
# <msg> is of type memoryview

def OnClosed(webSocket)
# <webSocket> is of type WebSocket

PyhtmlTemplate模块

from MicroWebSrv2 import *

pyhtmlTemplateMod = MicroWebSrv2.LoadModule('PyhtmlTemplate')
pyhtmlTemplateMod.ShowDebug = True

在**.pyhtml**页面中，您必须使用以下说明：

说明	代码构架
PY	{{ py }} Python code {{ end }}
IF	{{ if Python condition }} html bloc {{ end }}
ELIF	{{ elif Python condition }} html bloc {{ end }}
ELSE	{{ else }} html bloc {{ end }}
FOR	{{ for identifier in Python iterator }} html bloc {{ end }}
Expression	{{ Python expression }}

请看test.pyhtml页面示例:

Global var "Toto": <span class="label">{{ Toto }}</span><br />
* Refresh this page to see this variable changing.
<div class="sep"></div>

Your address:<br />
<ul>
	<li> IP   = {{ Pequest.UserAddress[0] }}</li>
	<li> Port = {{ Pequest.UserAddress[1] }}</li>
</ul>

<div class="sep"></div>

{{ if 'CHROME' in Request.UserAgent.upper() }}
	You are on <span class="label">Chrome</span> browser.
{{ elif 'FIREFOX' in Request.UserAgent.upper() }}
	You are on <span class="label">Firefox</span> browser.
{{ else }}
	You are not on Chrome or Firefox browser.
{{ end }}
<div class="sep"></div>

You are in SSL: {{ Request.IsSSL }}<br />

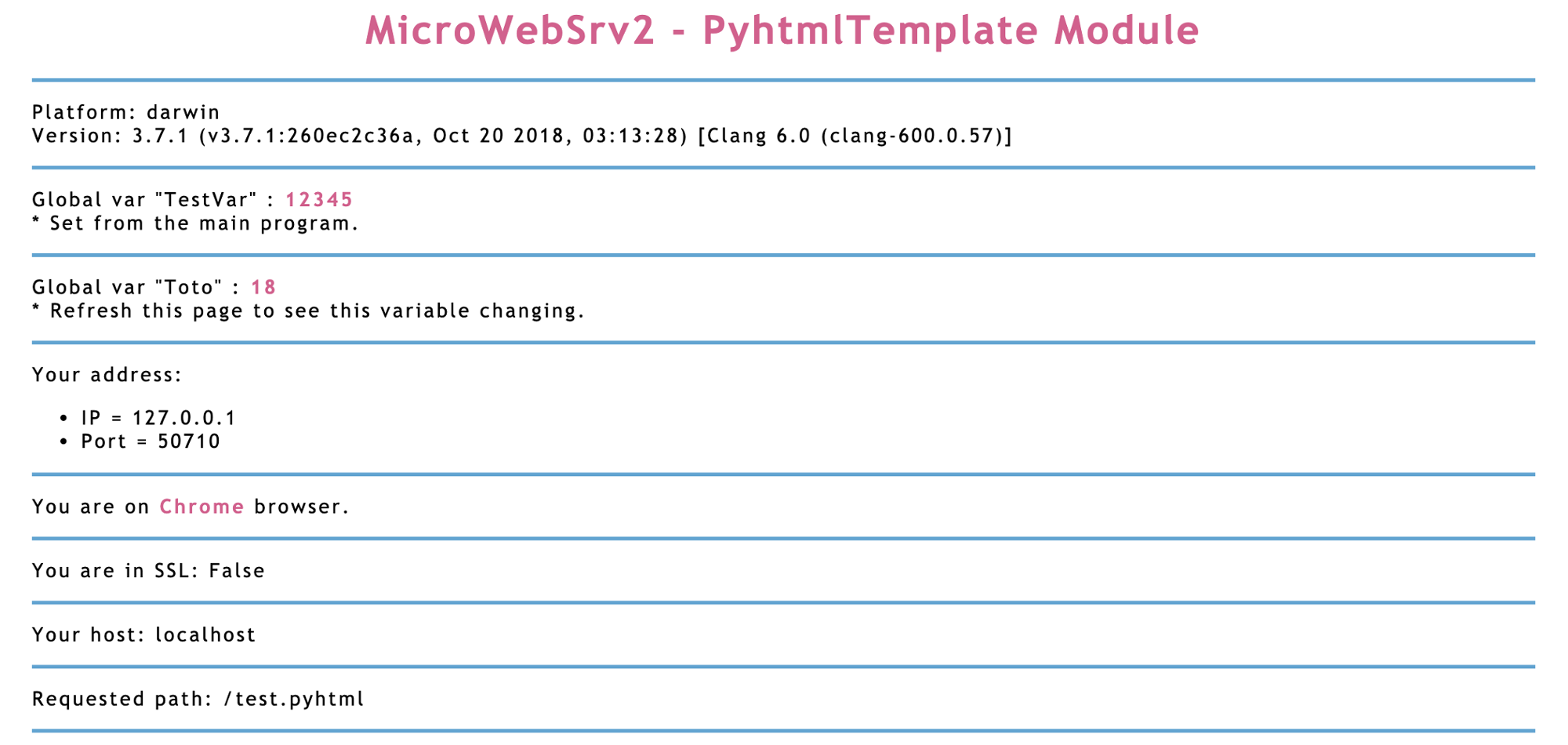

显示页面效果如下：

PyhtmlTemplate模块实例方法

• pyhtmlTemplateMod.SetGlobalVar(...)

def SetGlobalVar(self, globalVarName, globalVar)
# Defines a global variable accessible by all pyhtml pages.
#   - No return value.
#   - <globalVarName> must be a not empty string.
#   - <globalVar> must be an object or None.
# An exception can be raised if <globalVarName> is not correct.

• pyhtmlTemplateMod.GetGlobalVar(...)

def GetGlobalVar(self, globalVarName)
# Retrieves a global variable accessible by all pyhtml pages.
#   - Returns an object or None.
#   - <globalVarName> must be a not empty string.
# An exception can be raised if <globalVarName> is not correct.

PyhtmlTemplate模块属性

名称	类型	Get	Set	说明
ShowDebug	bool	☑️	☑️	Enables debugging on web pages.
